Product Details
＋

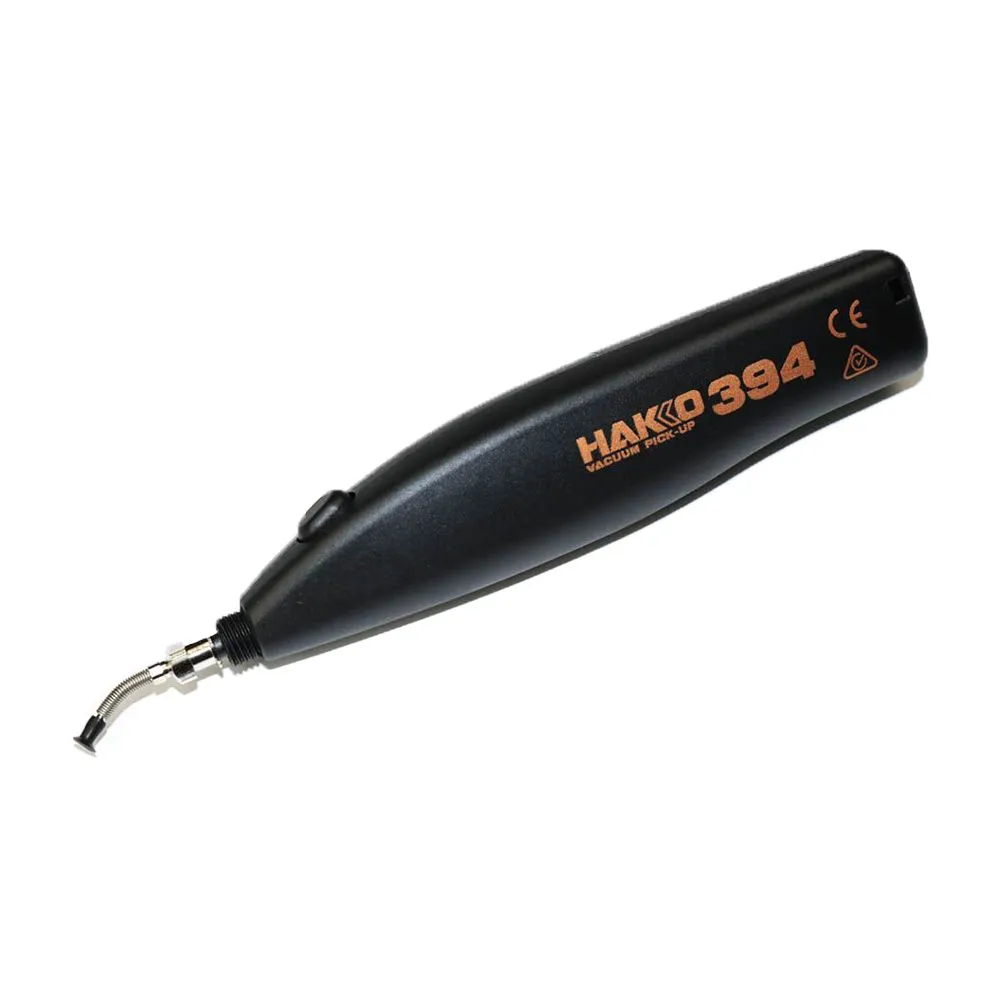

The suction power on the Hakko 394 Vacuum Pick-up Tool provides smooth, even suction to hold a part in place while you line it up the exact placement and the perfect pick-up tool for surface mount components.
Specifications
| Model Name | 394 |
| Part No. | 394-01 |
| Power Supply | AAA alkaline battery x2 |
| Outer Dimensions | 130(L) x 22(W) x 29(H) mm |
| Weight w/o batteries | 43 g |
Pick-up Power
| Name/Description | Pick-up Performance | Part No. |
| Pad 3 mm | 6 gf | |
| Pad 5 mm | 40 gf | |
| Pad 7 mm | 80 gf | |
| Pad 10 mm | 120 gf |
Service Life of Battery
Pick-up Repetition Limit: ~30,000 pick-ups (with alkaline batteries)
A 26 mm x 26 mm QFP is picked up for 2 seconds using a 10 mm diameter pad and then released for 1 second. This cycle is repeated continuously until the QFP is no longer picked up.
Continuous Pick-up Time: ~15 hours
This is the time period from the moment a 26 mm x 26 mm QFP is picked up using a 10 mm diameter pad to the moment the QFP drops.
What's in the box?
| Description | Part No. |
| 394 Vacuum Pick-up Tool | --- |
| Bent Nozzle 1.1 mm | |
| Pad 5 mm | |
| Pad 10 mm | |
| Manual | -- |
| Alkaline Batteries (2) | -- |
SMD PICK-UP TOOL
Easy-to-use, battery operated pick-up tool for surface mount components.
• uses 2 AAA batteries
• ideal for handling surface mount components
