Product Details
＋
Measure torque to ensure proper calibration of your electric screwdriver. Note: This product comes with a Calibration Certificate.
Specifications
| Model Name | AP-10 |
| Part No. | AP-10 |
| Torque Measuring Range | 0.15-10.00kgf-cm (0.13-8.68lbf-in) |
| Accuracy | ±0.5%(199 digit or less ± 1 digit) |
| Measuring Direction | Clockwise and counterclockwise |
| Power Source | Ni-MH rechageable battery |
| Charging Time | 6 hours |
| Working Time | 8 hours |
| Socket size | 20mm |
| AC Adapter | Input: 100 - 240VAC, 50/60Hz Output: 7.3 - 8VDC, 0.5A |
| Dimension | 230 (L) x 120 (W) x 60 (H) mm |
| Weight | 2.0kg (4.4lbs) |
HIGH PRECISION TORQUE METER
• Measure torque clockwise / counterclockwise with ±0.5% accuracy
• Rechargeable Ni-MH battery
• High / Low torque alarm br> • Data analysis (Max., Min., Ave.)

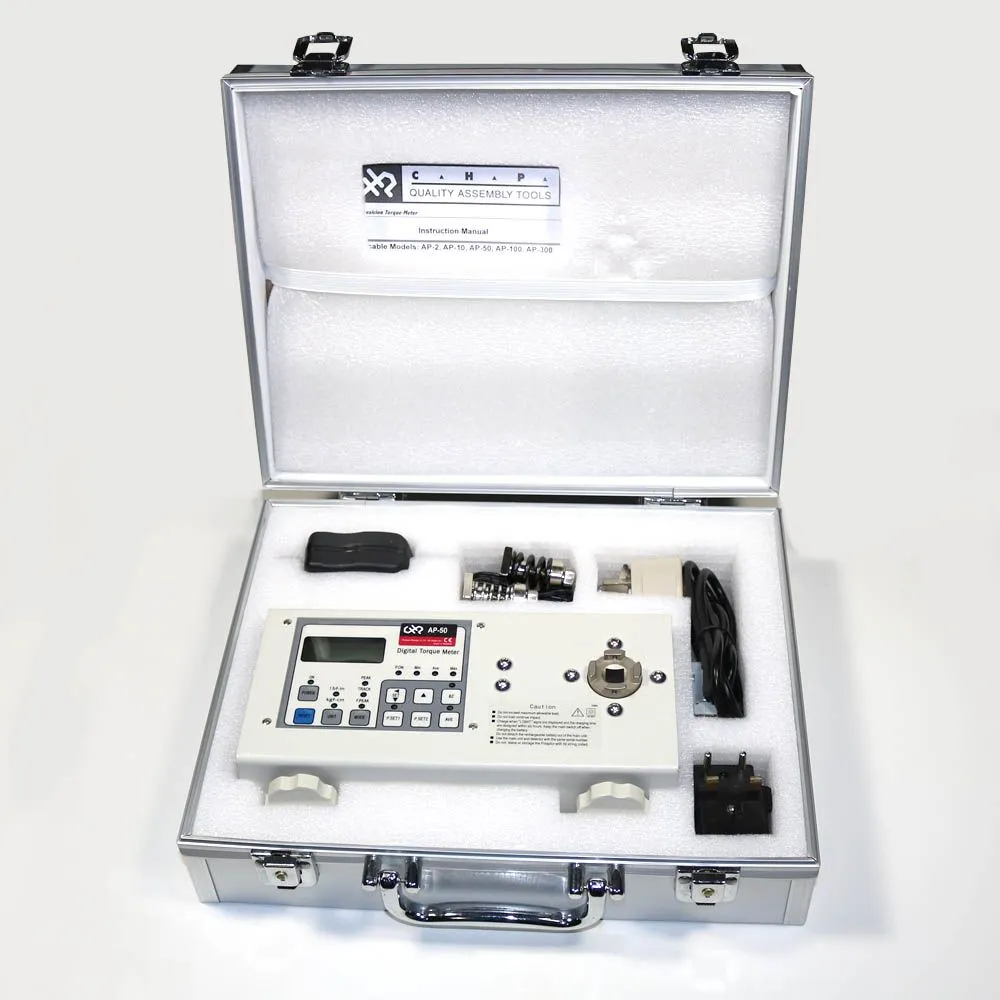

CONTENTS
| Item No. | Description |
| AP-10 | AP-10 Torque Meter |
| AT-L404001 | SJ-10 Joint (Run Down Adapter) |
| -- | Hexagon Bits |
| AT-L40452-1 | Power Adapter/Charger |
| -- | Power plug adapters (3) |
| AT-L40461 | Serial port cable |
| -- | Software CD |
| -- | Instruction Manual |
